Forced air cooling
Aluminium cylinders with ceramic nickel-silicon hardened bore coating, built for sustained high-power operation.
1 / 3FQ-350CC

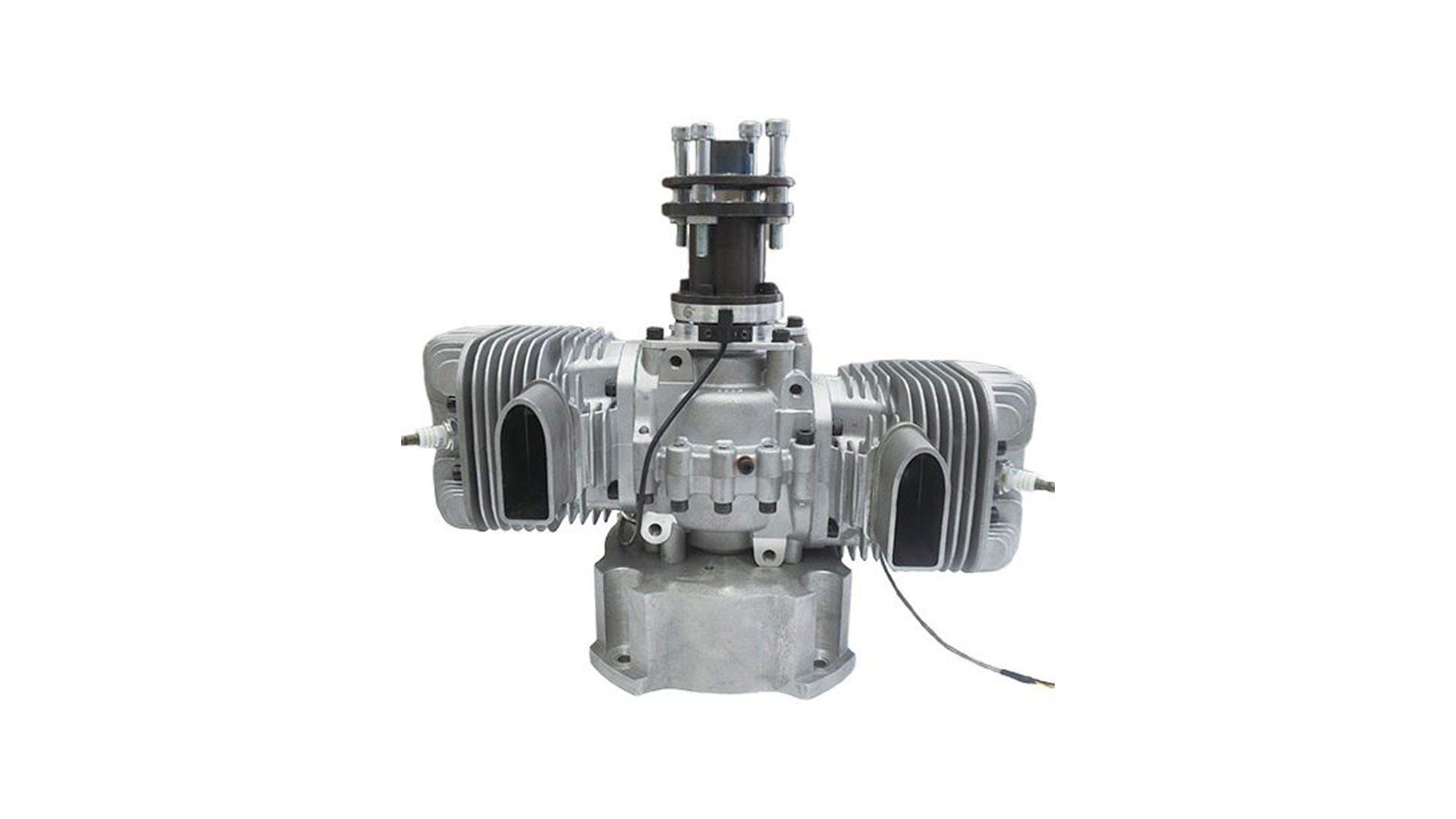

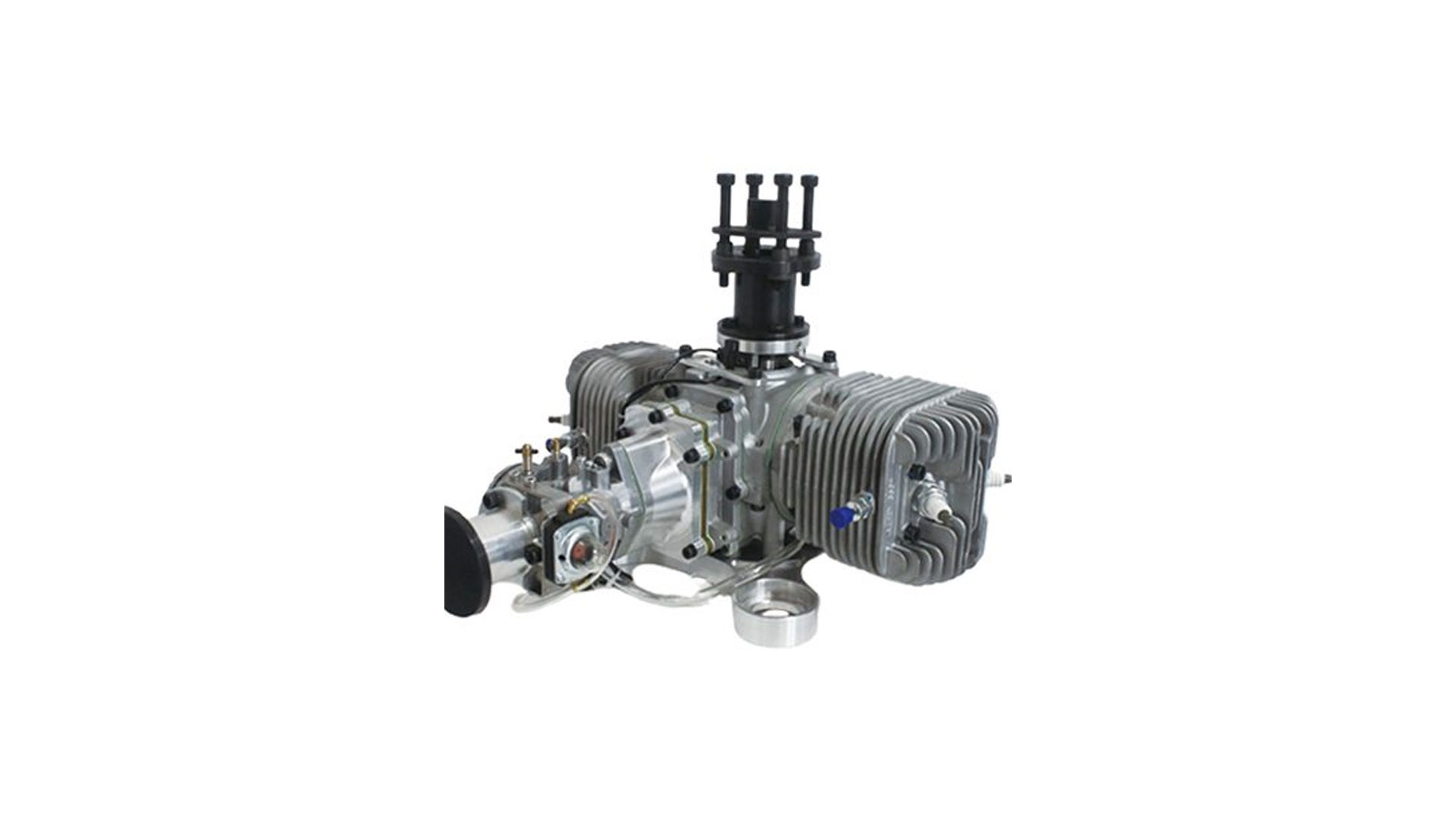

FQ-350 Aviation Engine
Horizontally opposed, twin-cylinder
The FQ-350 is an aviation-grade, air-cooled two-stroke engine with a horizontally opposed twin-cylinder layout. DC-CDI electronic ignition and premix lubrication ensure stable output at high altitude and under demanding conditions. Every engine is dynamometer-tested and flight-verified before delivery, backed by worldwide technical support.
- 21.6 kWMax power
- 47.5 kgStatic thrust (100 m)
- 350 ccDisplacement
- 11.46 kgWeight
Core Technology
Engineered for Demanding Environments
Horizontally opposed, air-cooled two-stroke layouts with CDI ignition and premix lubrication.
DC-CDI electronic ignition
Precise ignition timing, synchronized opposed-cylinder firing with automatic idle transition.
High-strength alloy steel crankshaft
Lightweight design with optimized vibration damping for a long service life.
Wide speed range (2200–5600 rpm)
Balances low-speed torque with high-rpm power and suits a range of propellers.
Specifications
Specifications
Every figure is dynamometer-verified to aviation-grade standards.
- Engine model
- FQ-350CC
- Layout
- Horizontally opposed, twin-cylinder
- Stroke
- Two-stroke
- Displacement
- 350 cc
- Bore × stroke
- 65 mm × 50 mm
- Power
- 29.37 hp / 21.6 kW
- Speed range
- 2200–5600 rpm
- Static thrust (100 m)
- 47.5 kg
- Static thrust (1800 m)
- 43.5 kg
- Max takeoff weight
- 150 kg
- Recommended propeller
- D750×H760; 30×20
- Weight
- 11.46 kg
- Crankshaft
- High-strength alloy steel
- Fuel / oil ratio
- 20:1
- Ignition
- DC-CDI electronic ignition
- Carburettor / EFI
- All-position carburettor with choke
- Generator
- 800 W / 2000 W
- Fuel consumption (carburettor)
- 10 L/h
- Fuel consumption (EFI)
- 7 L/h
- Options
- Starter, 24 V electric start (optional)
- Dimensions (L×W×H)
- 360 × 310 × 330 mm
Engineering Dimensions
Compact, Lightweight Layout
Precise dimensions make integration into an airframe or vehicle straightforward.
360 mmLength
310 mmWidth
330 mmHeight
11.46 kgNet weight
“The FQ-350CC puts efficient, surging power into every detail — the ideal choice for UAVs and light aircraft.”
